Dissecting Ardamax Keylogger

By Nir Yehoshua (@NirYeho) and Uriel Kosayev (@MalFuzzer)

Last month, we decided to enrich our knowledge by delving into a research of a popular hacking tool. We decided to go with one that was limitedly covered in the past. It is called — Ardamax Keylogger. In this blog post, we present the methods and operations analyzed, including key capabilities of the infection mechanism. We will also cover what data is being collected and how. In addition to the infection flow, we discovered a vulnerability in the Ardamax Keylogger that may allow attackers to exploit the keylogger’s DLL loading mechanism.

Executive Summary

The Ardamax Keylogger developers have an official website that gives users the option to buy their product or only use it for a “test drive”.

Ardamax Keylogger main website

We tried to find out when they first started and the oldest sample we were able to gather was generated somewhere around the year of 2013. In addition, these old versions are easily detected by existing AV engines. However, newer versions are still in question. From a quick overview of samples uploaded to VirusTotal, we noticed that the developers successfully evade detection in most cases. The detection rates are not that great comparing to the fact that Ardamax is a “noisy” keylogger with an extensive resume in the wild.

We’ve analyzed dozens of samples, from all versions we were able to find and discovered that the vast majority of them were vulnerable to the flaw we found.

Kill Chain

The infection kill chain comprises of the following steps:

1. Execution of the dropper Ardamax.exe, which drops several files, including a randomly named DLL to the %temp% folder.

2. The malicious process Ardamax.exe loads the dropped DLL that is used to drop the keylogger files under a hidden folder in the system folder.

3. Finally, the keylogger DPBJ.exe is executed, logging keystrokes and capturing screenshots.

Ardamax Dropper

Filename: Ardamax.exe

Size: 784 KB

MD5: E33AF9E602CBB7AC3634C2608150DD18

SHA1: 8F6EC9BC137822BC1DDF439C35FEDC3B847CE3FE

Once a victim launches the dropper, Ardamax.exe executes its initial routine GetTemp_Path (sub_401230), which obtains the Windows %temp% path, for later use, as shown in the following screenshot:

The call to GetTemp_Path function

By looking at the disassembly output from IDA, GetTemp_Path function calls GetTempPathW to retrieve the system’s temporary folder.

The call to GetTempPathW

The next routine calls CreateFileW. In this routine Ardamax drops several files to the temp folder, including a randomly named DLL, as we mentioned earlier.

The call to CreateFileW

Using Process Monitor, it is possible to see the randomly named DLL being copied into the folder. In this case, the DLL filename is @F9CD.tmp:

ProcMon DLL copy flow

Ardamax DLL

Filename: [rand_name].tmp

Size: 4 KB

MD5: D73D89B1EA433724795B3D2B524F596C

SHA1: 213514F48ECE9F074266B122EE2D06E842871C8C

Ardamax loads the randomly named DLL using LoadLibraryW.

If the DLL load is successful, the dropper will call GetProcAddress to get the DLL’s sfx_main address.

Get sfx_main address

The following screenshot illustrates the operation above in a dynamic execution flow:

Next, the dropper gets a string containing the system’s main directory, which is either System32 or SysWow64, depending on the system architecture. Then, according to a hard coded string, the dropper creates a hidden folder with the hard coded name “28463” and copies several files into it. The batch of files will include DPBJ.exe, which is the actual keylogger.

Creation of the hidden folder under the system folder

Once all files are copied to the designated folder, the main file of the keylogger dubbed DPBJ.exe is executed with ShellExecuteW:

Several files being dropped into the hidden folder and execution of the keylogger begins

List of files copied to the hidden folder

The list includes the following files:

  • DPBJ.006 & DPBJ.007 — DLL files that are loaded by DPBJ.exe in runtime.
  • DPBJ.exe — Keylogger’s main executable.
  • key.bin — Keylogger’s license serial key (Still in research).
  • Other files that didn’t seem interesting for our research purpose.

Using Process Monitor again, it is possible to track the behavior of the hacking tool and its use of the hidden folder. The screenshot below illustrates how the “DPBJ.exe” file is being called for execution:

Dropping of DPBJ.exe

Execution of DPBJ.exe

Ardamax Keylogger

Filename: [rand_name].tmp

Size: 646.5 KB

MD5: B863A9AC3BCDCDE2FD7408944D5BF976

SHA1: 4BD106CD9AEFDF2B51F91079760855E04F73F3B0

After the keylogger is executed, it starts to collect victim’s keystrokes and screenshots.

In the following routine, SetWindowsHookEx function is being utilized with idHook of 2 (WH_KEYBOARD) that handles keystrokes events and thus logging them:

SetKeyHook subroutine

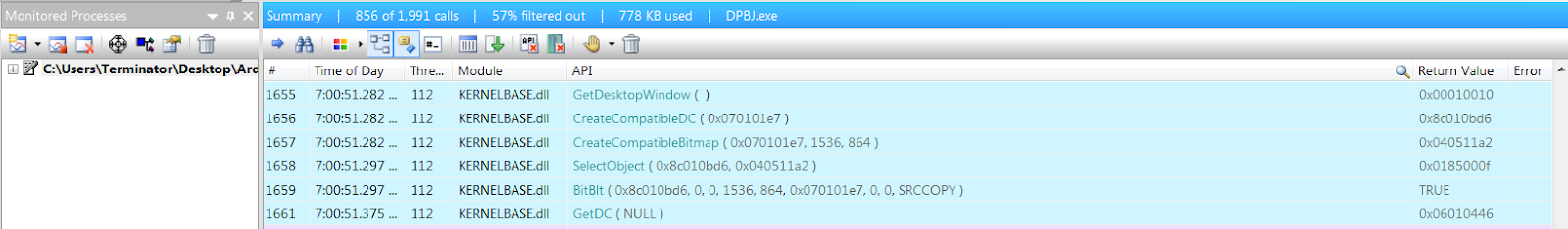

Below, we can see the use of several WinAPI functions to capture screenshots in runtime:

WinAPI functions being used for screen capture

Next, we see that the captured screenshots stored under C:\Windows\SysWOW64\28463 with the naming format of [Date_Hour].jpg:

Saved screenshots under keylogger’s folder

Here is an example of how the screenshots are being stored under the hidden folder discussed earlier:

Saved screenshots under keylogger’s folder

The interesting part here is that the keylogger (DPBJ.exe) loads DPBJ.006 and DPBJ.007, DLLs that call the WinAPI functions below:

  • SetWindowsHookEx — Keystrokes logging
  • GetDesktopWindow — Screenshot taking and more.

This can, in some way, make a researcher’s job harder while using dynamic tools, such as ProcMon, that has a limited insight on the process’s behavior. Furthermore, it can also fool some sandbox solutions that tries to intercept system calls to understand the malware’s behavior.

Also, we can see, the “DPBJ Agent” persistency logon object is created under the following registry element:

HKLM\SOFTWARE\Wow6432Node\Microsoft\Windows\CurrentVersion\Run

Using Autorun, it is possible to exhibit the Agent’s registry path and the executable location:

Persistence creation done with the RegCreateKey WinAPI function



Note: New versions of Ardamax Keylogger have the same behavior in the system only with a different persistency path. It drops the keylogger files into a randomly named folder under the %ProgramData% folder which is also a hidden folder by default:

Persistency on a different path in the new versions of Ardamax Keylogger

Eventually, the keylogger tries to communicate to a Yahoo-based SMTP server but the mailbox is unavailable (in this case):

Communication to the C2 server over the SMTP protocol

Keylogger Exploitation — DLL Hijacking

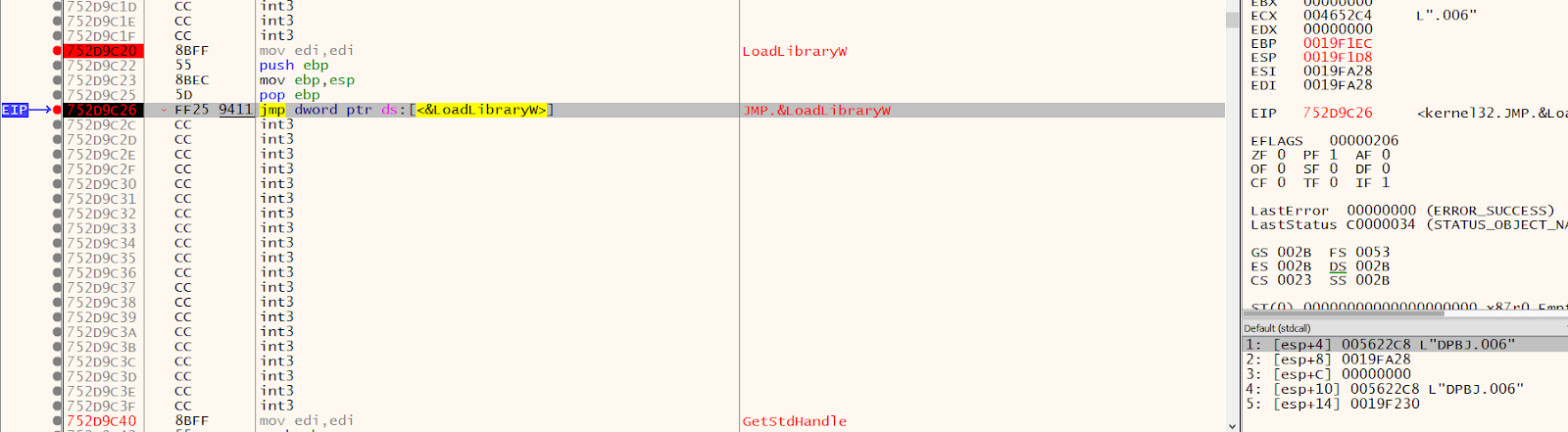

As we wrote earlier, “DPBJ.exe” is loading DLLs with LoadLibraryW. In other words, it is looking for a specific DLL file name (in this case DPBJ.006 and DPBJ.007) to load them:

LoadLibraryW used for loading DLLs

DPBJ.006 DLL is being loaded


Vulnerability

A lack of validation in the call to LoadLibraryW creates a possible backdoor for the generated executable. It allows for loading a DLL only based on its name, hence any third-party attacker can abuse this mechanism by crafting their own malicious DLL and replace it with the exact name (“DPBJ.006”, in this example). In conclusion, when the DPBJ.exe is executed, it’ll load the replaced attacker’s crafted DLL.

To make it even more visual for you, we generated a PoC video where we show a live detonation of the keylogger to get a reverse TCP shell on the victim system:

https://www.youtube.com/watch?v=iK_A_6lTQ6A

Note: New versions of Ardamax Keylogger are also vulnerable to this attack including the latest version of 5.1 that was released on February 2019.

Conclusion

We saw that the Ardamax Keylogger has existed in the wild for over 6 years now. Although it’s been in the market for so long, secure coding practices were not part of the process, hence it creates more threats for infected victims. In addition, we saw a rather simple flow with features that are not unique enough to rate Ardamax as a strong offensive tool, but enough to evade some detections.

Indicators of Compromise

Ardamax.exe: E33AF9E602CBB7AC3634C2608150DD18

[Rand Name].tmp: D73D89B1EA433724795B3D2B524F596C

DPBJ.exe: B863A9AC3BCDCDE2FD7408944D5BF976

Related samples created recently

cfd015112356dba7c4e81a6449e37e3d

a2b833052cb2743ec60f422f0e7bc185

340b5cc3eb29cdabc4e9647dddc7dea6

b0400b1bf445f8ad5aa978212b04ab94

ed866bf88b059caa4f73211ee62685ab

21fd08a181b865e9b34db69590056dab

83d597b8db70ccf56528a96c1aa48a22

0ea2a4502f86f58fde206f7fe2f8d084

d983a4f16933d3a9cee74283b7a5514b

a258f4a843decccf0e14026b8af4ffb3

c9c546f94488025839760d02514b979b

0f94f7c7ee0e1966c1f3eea4b22a61fe

73a3c61a7272485b9826fac769f0e95d

6cbe9e7fd502e785b43c3e2ba1e66b7f

6bf292ef5e463a40edc9ab4008c242b7

4a57ce1565f05454e9b5a4a80d048865

352e021537a6edfb9d5fa10084d43c96

d49b103ecc47c5e619594dc9e623ff02

568d70bc8109785fb50a92dbf1c173cc

68a7db6168393d289982d3935b8e0f53
